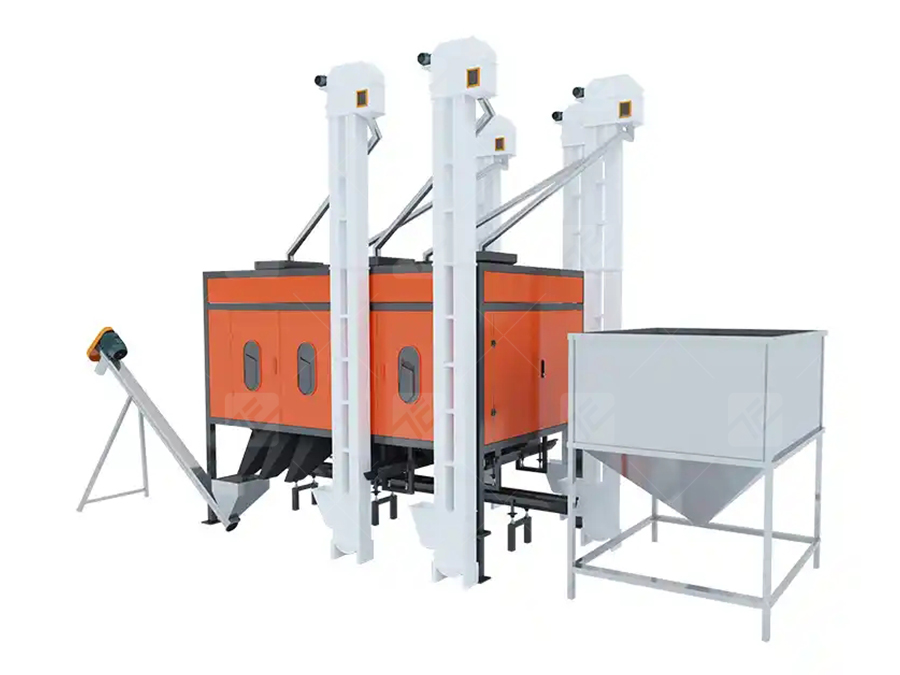

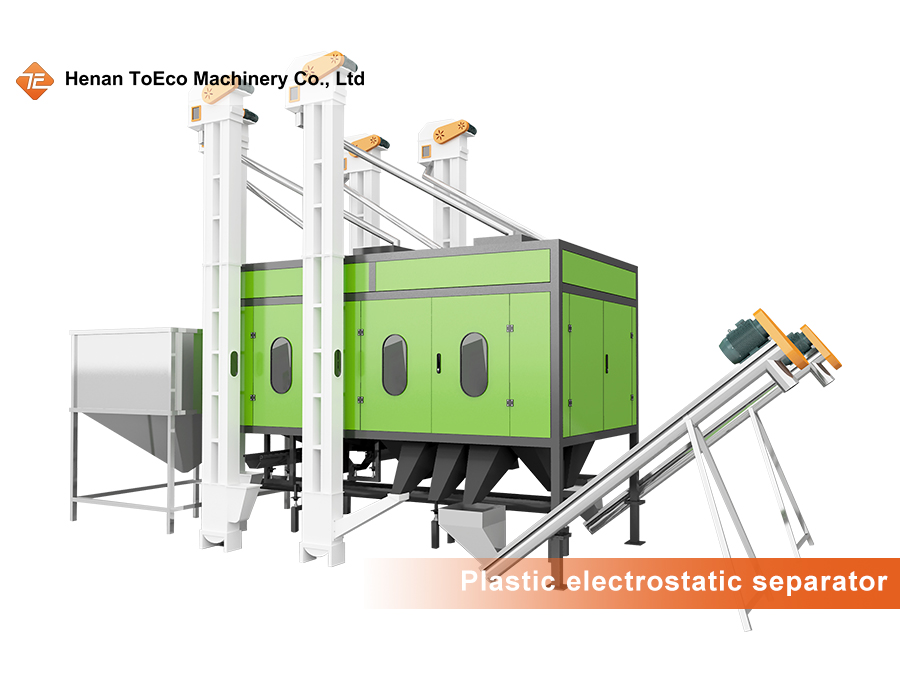

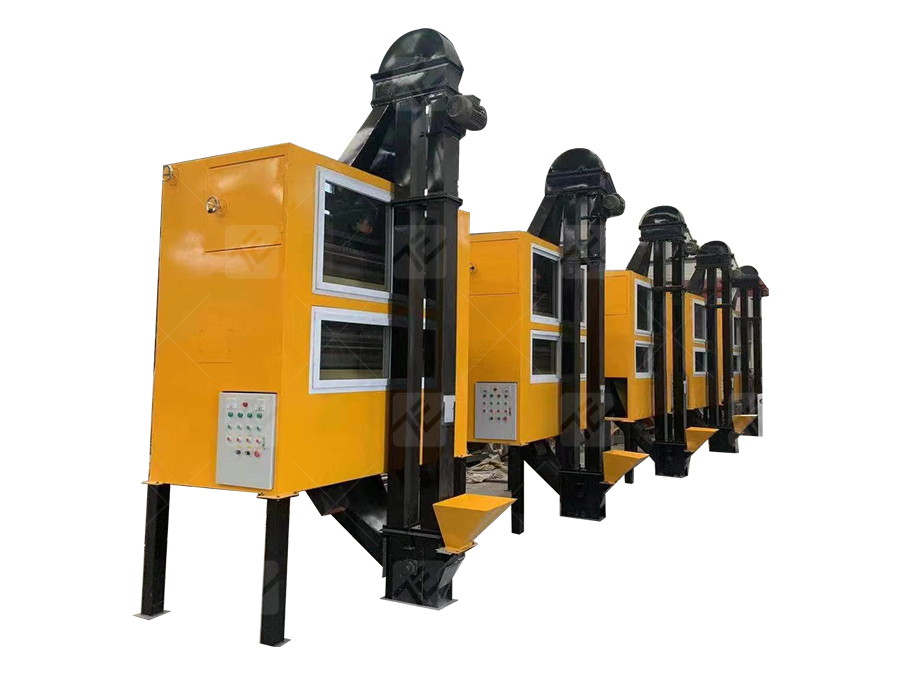

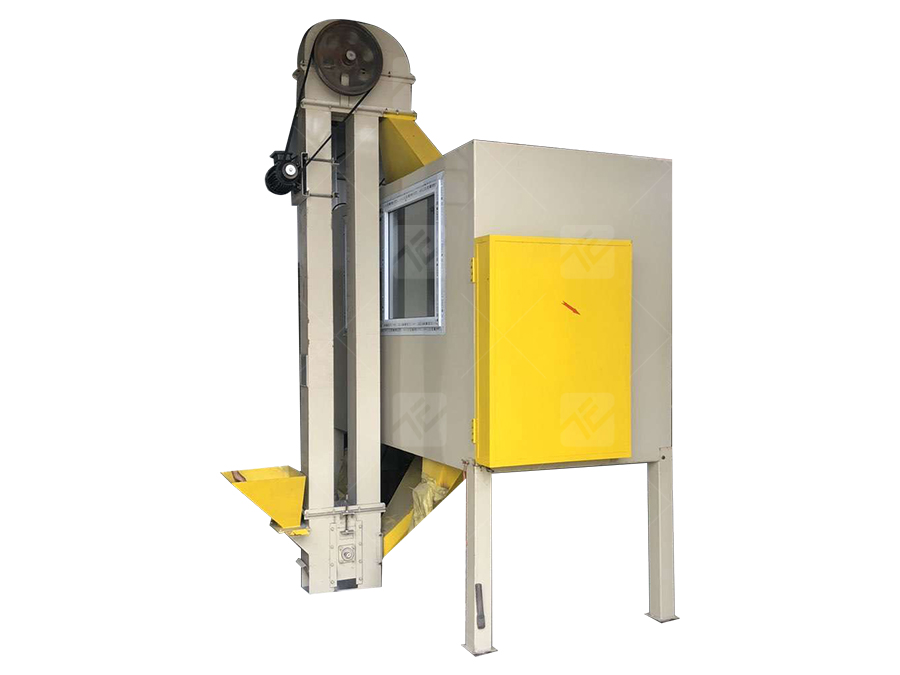

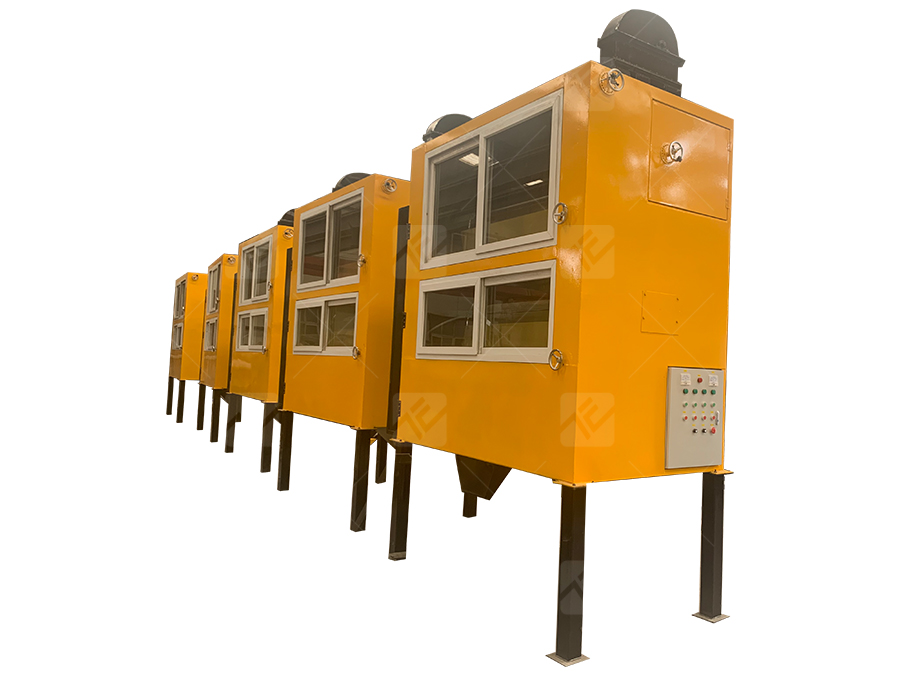

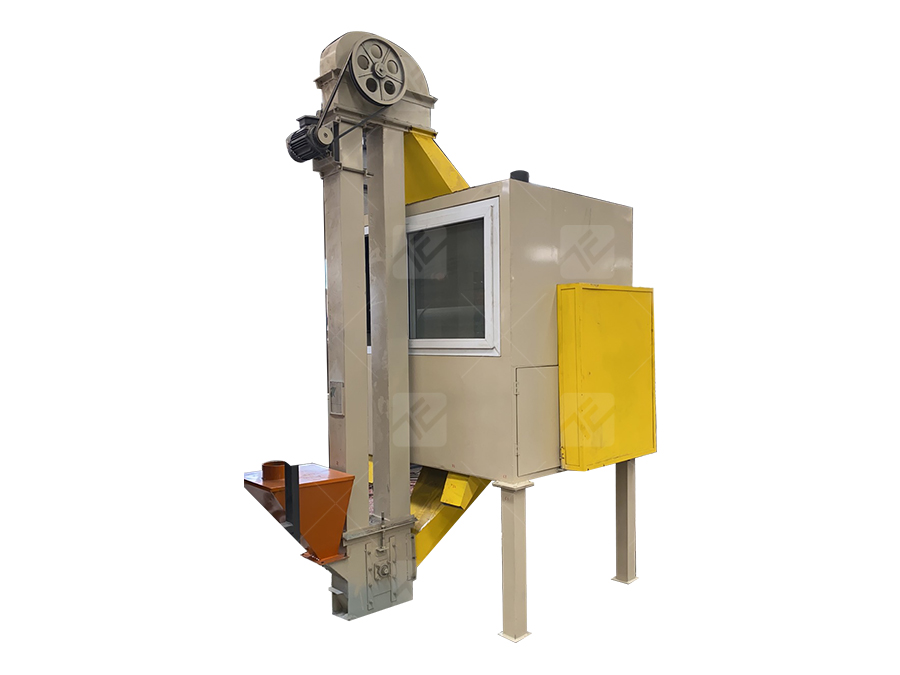

High voltage electrostatic separator

    Electrostatic separator is also called electrostatic separator. It can realize the function of multiple sorting of sorted materials in one device. High-voltage electrostatic

separator is widely used in metal and non-metal recycling projects such as waste circuit board recycling equipment, waste wire and cable recycling equipment, aluminum

plastic sorting equipment, etc. The equipment has low energy consumption, low noise, high output, and is dust-free and environmentally friendly. According to the

customer's requirements for material extraction composition, purity, and output, we can make a matching electrostatic separator.

    Tools/Raw Materials

    Mineral sorting

    Carbon extraction

    Separation of conductors and non-conductors

    Separation of metal and non-metal mixture particles

    Extraction of metal particles and powder from grinding wheel ash

    Aluminum and plastic waste recycling equipment, copper and plastic waste recycling equipment, waste circuit board recycling equipment, copper rice machine supporting

products.

    Methods/Steps

    The high-voltage static electricity generated by the high-voltage generator inside the equipment discharges to the grounded rotating roller, and the materials to be sorted

are evenly discharged onto the rotating roller through a special unloading device. After the conductor material is electrified, it discharges the electricity to the ground through

the grounded rotating roller, and coupled with the inertia of the rotating roller, the conductor material is thrown into the conductor receiving hopper.

    After the non-conductor material is electrified, due to its poor conductivity, it is adsorbed on the surface of the rotating roller, and as the roller turns to the back, it is swept

by the brush and falls into the non-conductor receiving hopper. Some of the conductor and non-conductor materials fall into the intermediate receiving hopper due to

different reasons such as the roller speed, the distance of the equipment baffle adjustment, the size of the material particles, and the amount of electricity received, and then

enter the feeder and the unloading device for sorting.

    Technical specifications
