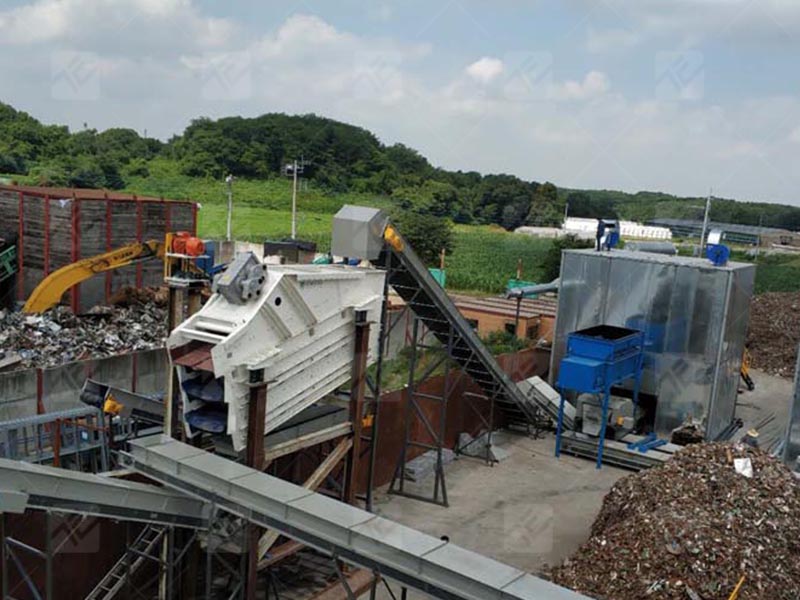

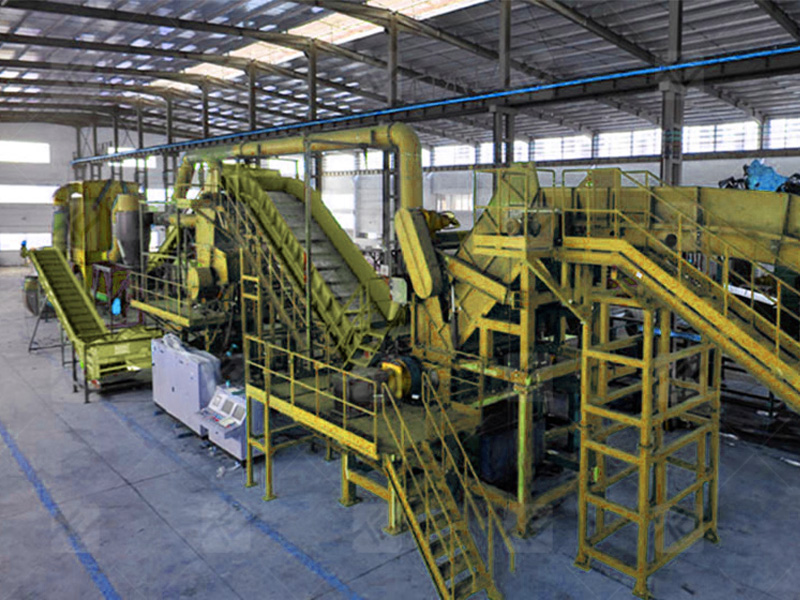

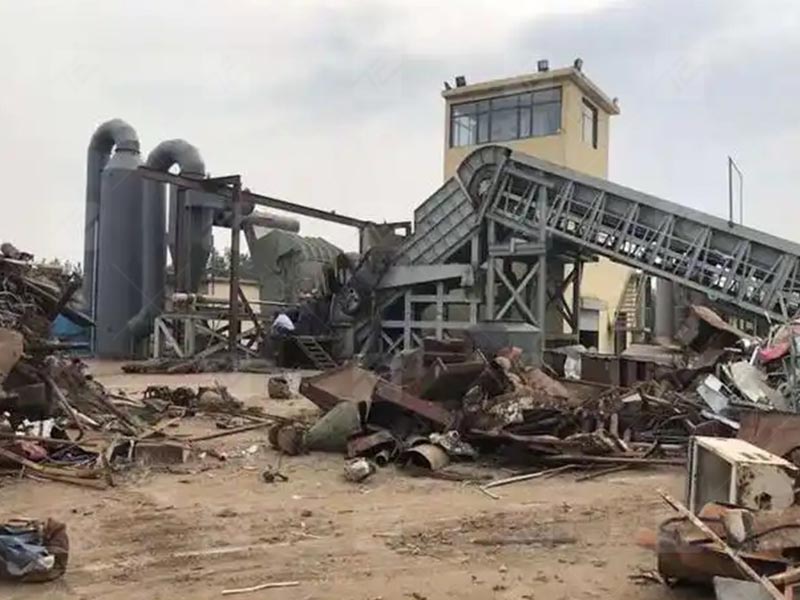

Production Process of the Scrap Metal Recycling Plant

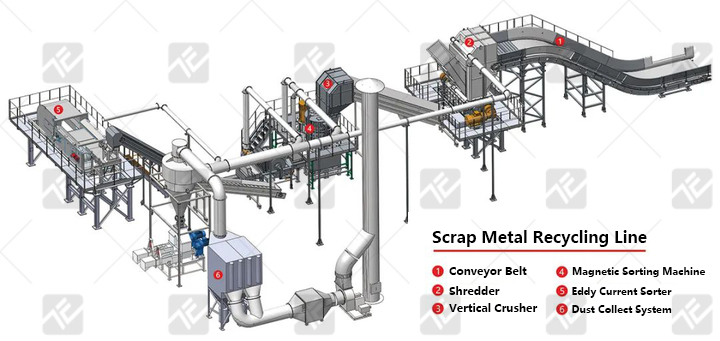

1. The metal recycling line adopts double-shaft metal shredder, conveyor, metal crusher, and Magnetic drum separator and Eddy current sorter etc.
2. Use separators and special structures to remove the foam and dust during the crushing period.
3. The scrap metal recycling equipment separates the ferrous metal by a magnetic separator.
4. A vortex separator is adopted by the waste recycling machine to separate the non-ferrous metal from nonmetal materials. Conduct innocent treatment by removing dust in concentrated air and filtering the gas by activated carbon.
If you are interested in the scrap metal recycling plant , please contact us. We have a variety of waste recycling plants, such as scrap car recycling line, tire recycling plant, solid waste recycling plant, Household garbage recycling line and more.
Application

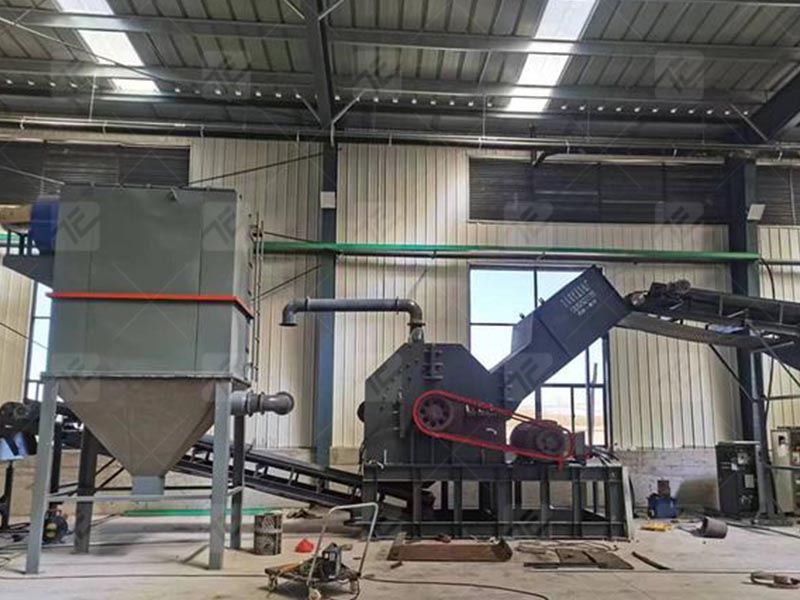

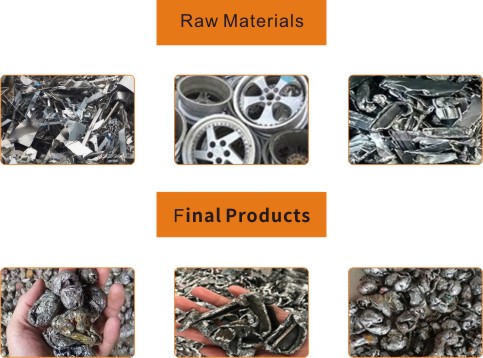

Scrap metal crusher is widely used in the crushing of all kinds of scrap metal, including automobile shell, engine shell, aluminum alloy doors and windows, waste castings, metal briquettes, paint barrels, bicycles, metal barrels, motorcycles,scarp iron,washing machines, refrigerators, electric wardrobes, steel plate offal, etc., with convenient maintenance, simple structure and large capacity.
Technical Details
Model | TC1200D | TC1500D | TC2000D | TC2600D |
Motor | 30kw+30kw | 30kw+30kw/55kw+55kw | 75kw+75kw/90kw+90kw | 110kw+110kw /160kw+160kw |
Gearbox | Gearbox: planetary type, gear transmission | |||
Shaft | Solid shaft, made of 40Cr, hardened and tempered | |||
Shredder Chamber (inner) | 1120x1000mm | 1450x1100mm | 1920x1250mm | 2425x1400mm |
Rotor Rotary Speed | 6-8 rpm | 6-8 rpm | 4-6 rpm | 4-6 rpm |
Blade Type | Detachable type | Detachable type | Detachable type | Detachable type |
Blade | Dia.530mm | Dia.530/560mm | Dia.720mm | Dia.720/900mm |
Lubrication System | With automatic oil lubricator for gearboxes | |||
Dimension | 3.2x2x1.9m | 4.9x2.8x2.8m | 6x3.8x4.8m | 8.2x4x4.3m |
Weight | 17000kg | 22000kg | 29000kg | 38000kg |
