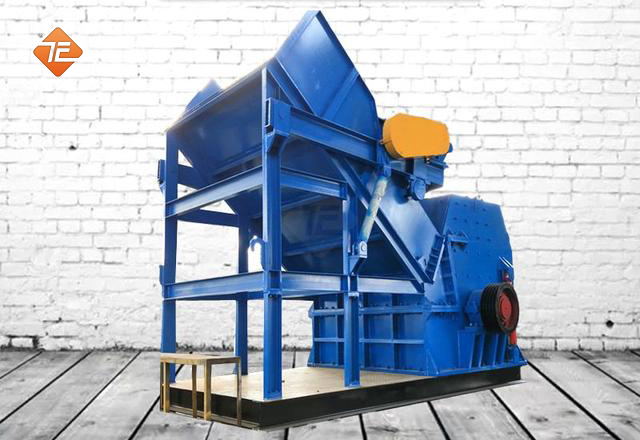

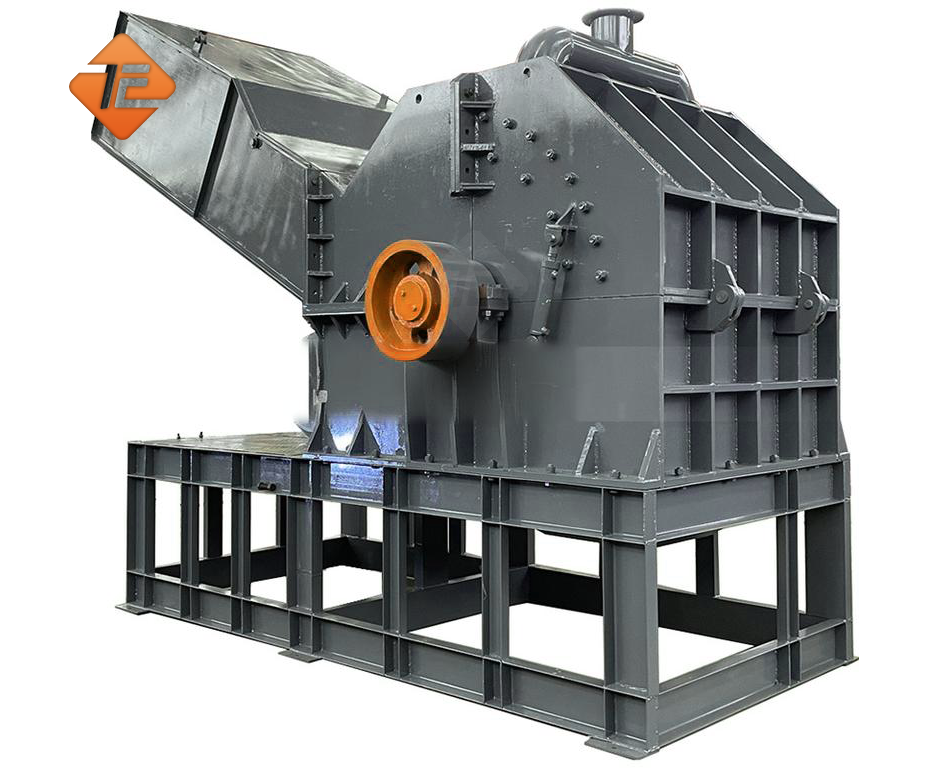

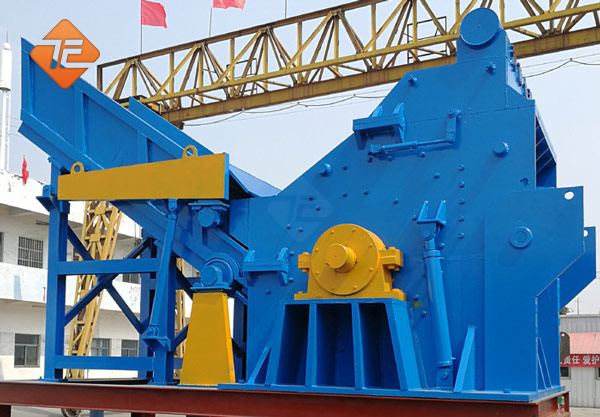

Metal Crusher

Product Introduce

The metal crusher is mainly used for the decomposition and crushing of scrap metal, whether it is scrapped cars or scrap cans. The machine achieves good paint removal effect and granulation effect.

Structural Feature

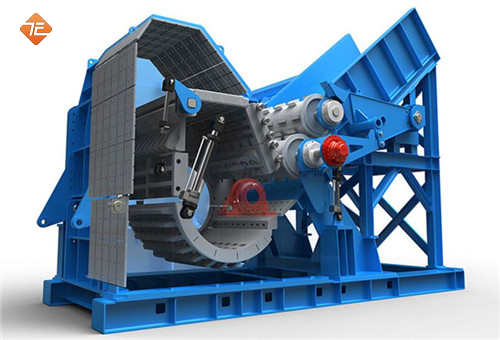

1. The metal shredder uses the basic principle of hammering. Driven by a high-speed and high-torque motor, the hammers on the rotor of the main machine take turns to hit the objects to be crushed that enter the cavity, and pass through the lining plate and the hammer. space, tear the objects to be broken into pieces that meet the specifications.

2. When required for crushing, a small amount of water should be sprayed to prevent dust, and there is no cleaning.

3. The metal shredder can greatly improve the dismantling efficiency of scrap metal in terms of investment value, and at the same time enhance the purity of scrap steel to provide charge for low-cost smelting of scrap metallurgy industry.

Working Principle

The waste metal scrap is sent into the equipment for forced feeding and crushing through the feeding conveying device, and the metal briquette is primary crushed by the crushing process of the pressing roller and the primary crushing shaft, and the metal briquette material after primary crushing enters the main cavity of the equipment , Driven by the high-speed and high-torque motor, the hammers on the rotor of the main machine take turns to hit the metal briquette material entering the cavity of the main machine through the space between the lining plate and the hammer, and the briquette to be broken can be fully recovered in the crushing cavity. In the effective fine crushing, the briquette of the object to be crushed is torn into pieces that meet the specifications, and then flows down from the screen. The crushed materials pass through the air cyclone sorting system to separate the paint, rust and waste plastics in the metal metal briquette.

Technical Specification
