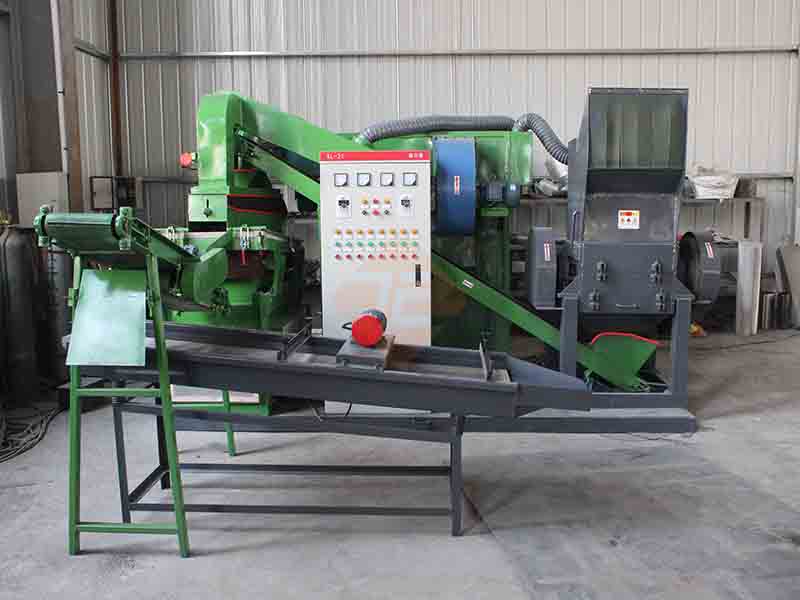

The main purpose, principle and scope of application of w-600 copper rice machine

The main purpose, principle and scope of application of the equipment

1. Main purpose

The 600-type dry copper rice machine is aimed at various wires and cables, household appliance wires, communication wires, computer wires and other waste wires that are not suitable for processing by wire stripping machines. The large and small wires can be crushed at the same time without classification, realizing the separation of various waste wires, metals and plastics. Thousands of separation and recovery. It has the advantages of large production capacity, low power consumption, high sorting rate, one-time feeding, multi-machine cooperation (crushing, conveying and feeding, vacuuming and thousand-type separation), fully automatic intelligent control, production by only one person feeding, and advanced dust collection device. The method not only improves the quality of recovered copper, but also recycles plastics and solves environmental pollution at the same time.

2. Working principle

Under the action of wind force, two kinds of materials with different densities are deflected by the amplitude movement of the screen surface with a certain angle, so that the dense copper wire moves forward against the copper outlet of the screen, and the plastic skin with low density floats on the copper. The top of the wire flows to the outlet, so as to achieve the purpose of copper-plastic separation. The separation cleanliness rate is proportional to the diameter of a single copper wire. The thicker the single diameter of the copper wire is separated from the plastic, the cleaner the separation is, and the output per unit time is also larger. The thinner the single diameter of the copper wire is separated from the plastic. worse,

3. Scope of application

All kinds of wires and cables, household appliance wires, communication wires, computer wires and other waste wires that are not suitable for processing by wire stripping machines.
