Copper Aluminium Tank Recycling Production Line

Product Introduce

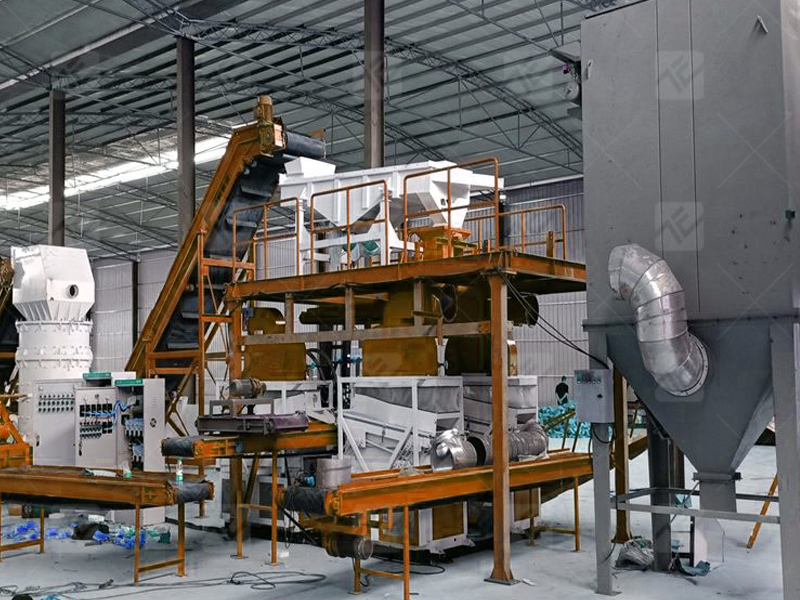

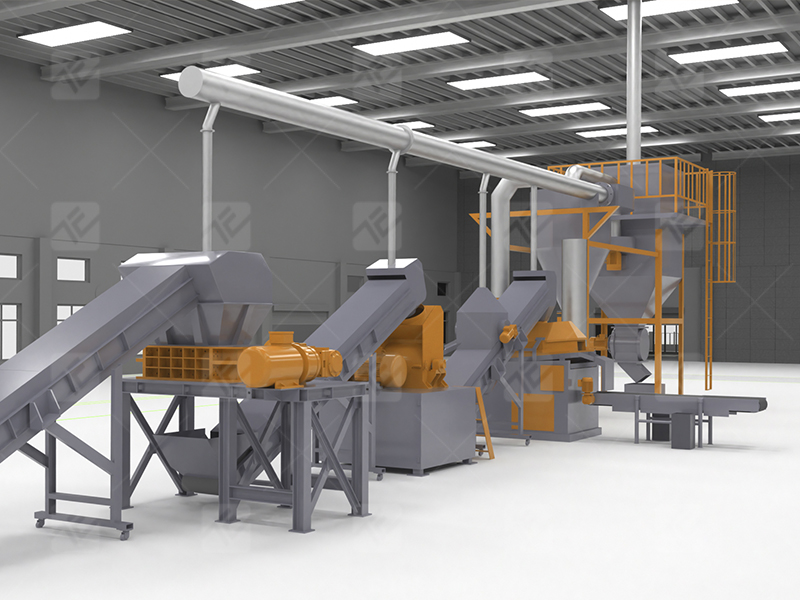

The new copper-aluminum water tank crushing and separation production line of copper-aluminum separator is to recycle the copper-aluminum radiators disassembled from air conditioners, generators, etc., and sort out copper, iron, and aluminum. The radiator copper and aluminum water tank crushing and separation equipment is a combined application of a series of equipment such as shredders, vertical composite crushers, magnetic separators, air separators, specific gravity separators, etc. aluminum. Put the radiator into the shredder, the shredded materials are sorted out by the magnetic separator, and then the remaining materials enter the crushing system, and the crushed materials pass through the sorting system to separate copper and aluminum. The equipment is equipped with covered dust removal equipment, and the whole recycling process is clean and pollution-free. Copper sorting rate>98%, iron sorting rate>99%, aluminum sorting rate>98%

Structural Feature

1. The entire production line uses the PLC automated control system to achieve coordinated work between the equipment, stable feeding and operation.

2. Simple structure, reasonable layout, strong processing capacity, stable operation, firm and durable, safe and reliable.

3. Coarse crushing uses the biaxial shredder with low rotating speed and large torque, and the cutter and shaft are specially treated with alloy materials.

4. The entire set of equipment uses the negative pressure induced air pulse dust removal system to ensure a good working environment.

Working Principle

1. Double-shaft shredder is a kind of crushing equipment with low speed and high torque. It can squeeze, tear and shred the radiator put into it to strip materials with a width of 5CM and uneven length. The shredded materials can be Evenly put it into the subsequent crushing equipment to improve crushing efficiency and increase output.

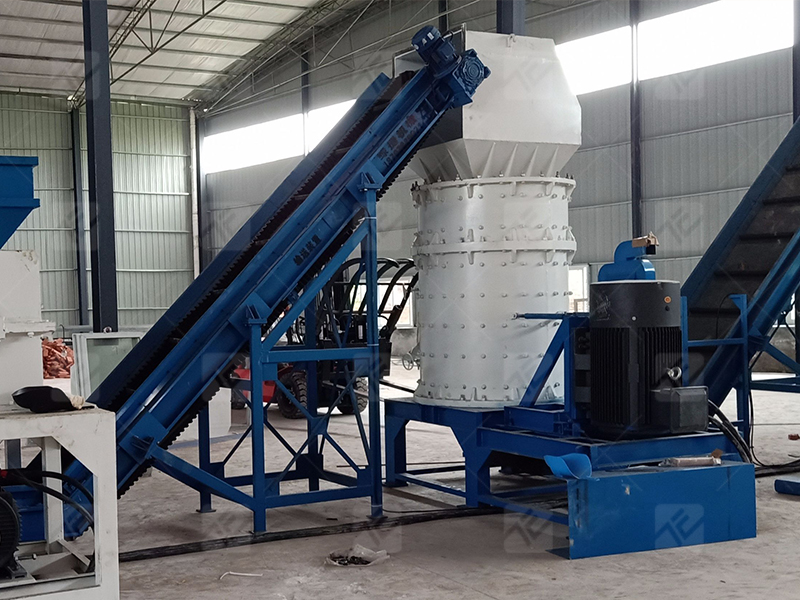

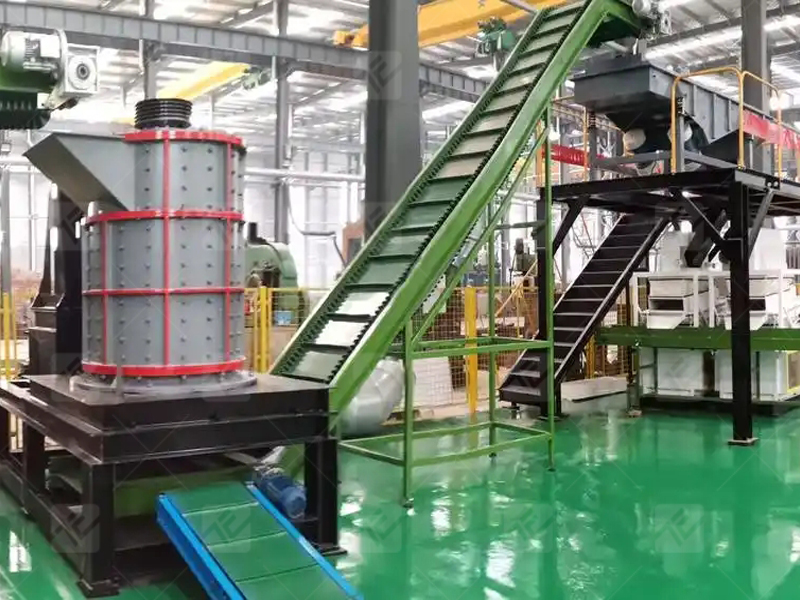

2. The vertical crusher can produce impact and shearing force on the material put into it through the high-speed rotation of the blade, so that the material can be crushed and pulverized, and the material with uniform particle size can be provided for subsequent sorting.

3. The air separator can sort out most of the aluminum in the material and improve the sorting efficiency of the whole system. There is a fan inside the air separator. After the crushed material enters the air separator, it is Under the action of , the lighter aluminum will fall farther inside the air sorter, thereby sorting out most of the aluminum in the material.

4. The specific gravity separator is based on the specific gravity and suspension speed of the material. Under the action of air flow and vibration, the material is separated by the air flow by using the inclined surface of the material with certain movement characteristics. When the material falls into the sorting machine, it is subjected to the action of the inclined airflow, so that the material with lighter specific gravity is automatically classified and kept in the upper layer, and the material with heavier specific gravity is in the lower layer. The medium flows in different directions, thereby realizing the separation of copper and aluminum.
